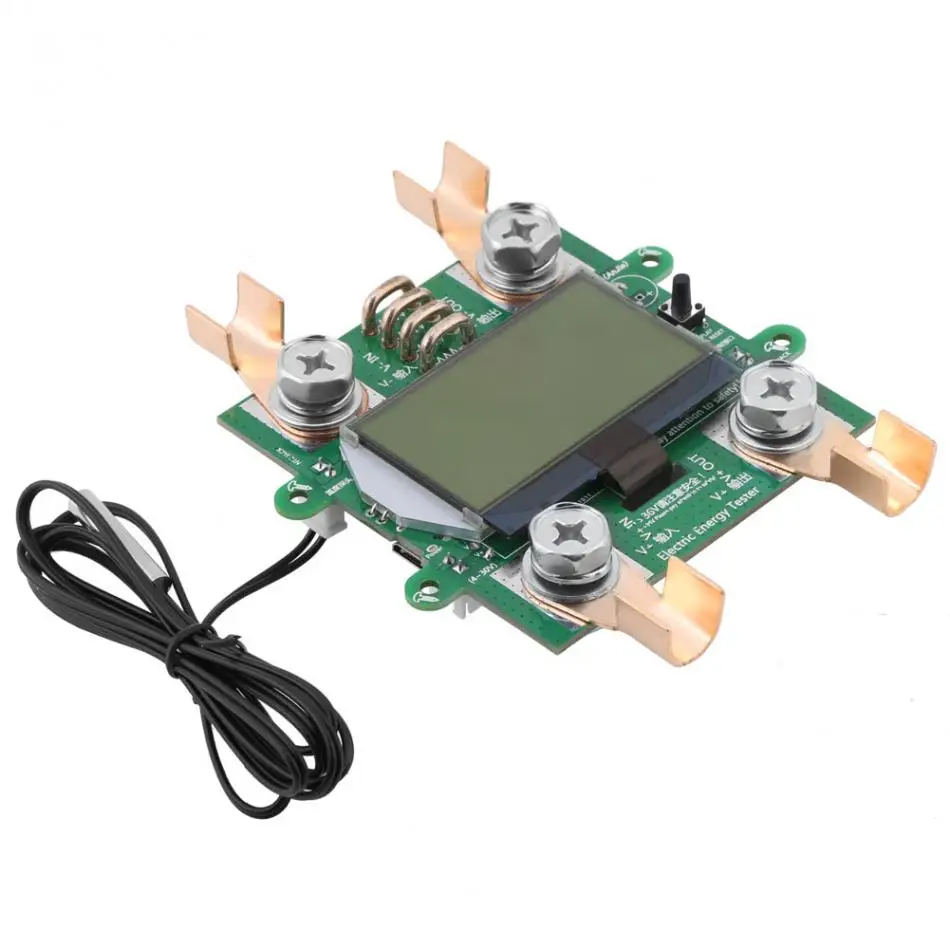

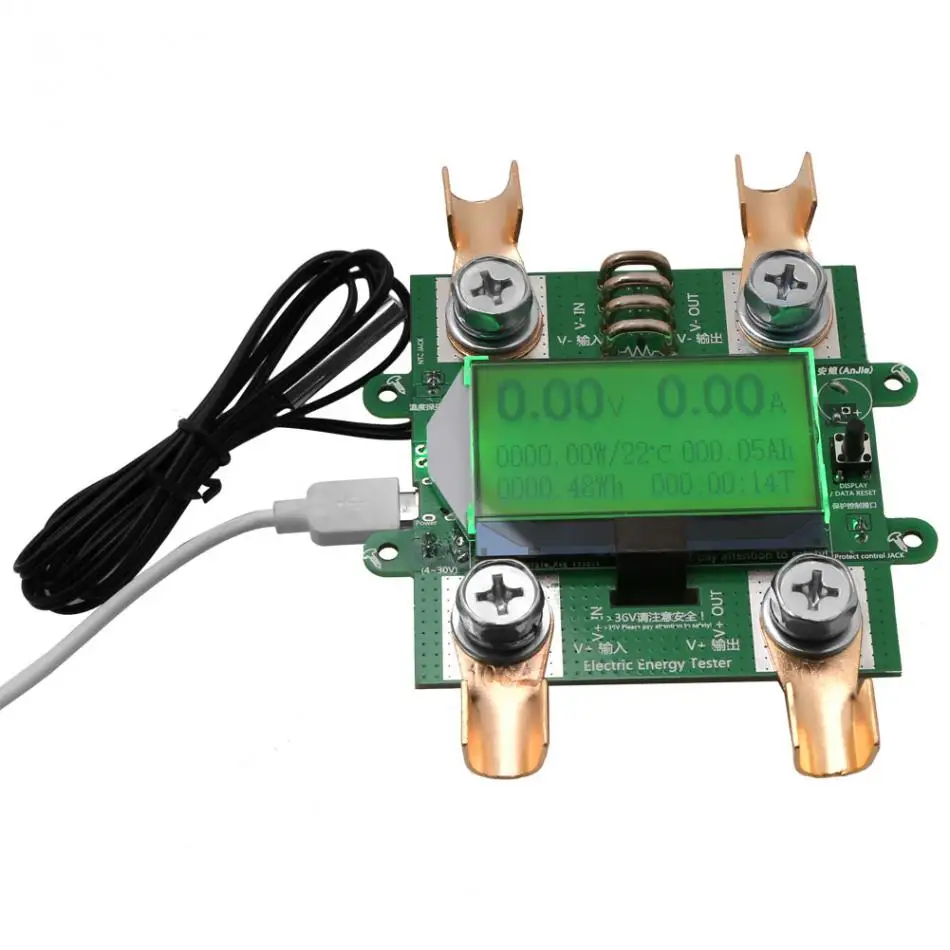

Digital LCD Voltmeter Ammeter Voltage Meter 300V 100A Car Battery Capacity Tester With Temperature Probe Terminal Accessories

Features:

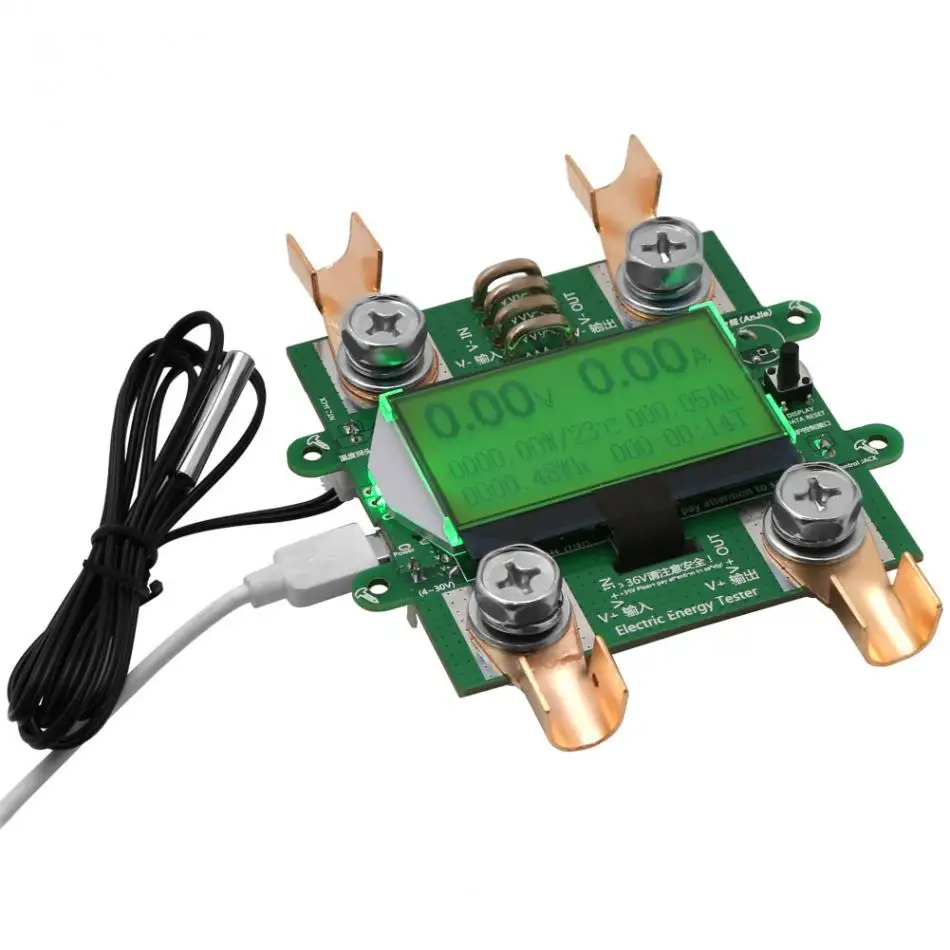

• Large clear LCD can display current, voltage, capacity accumulation, energy accumulation, power, impedance, temperature, time, more practical.
• Long press multifunction button to reset data, short press button 5 times to adjust timing/alerts setting.
• Test voltage range of 0-300V, current range of 0-100A, test power is up to 30000W, test high voltage batteries, rechargeable batteries, or low voltage 18650 batteries, dry cells or button cells, most dc equipment.

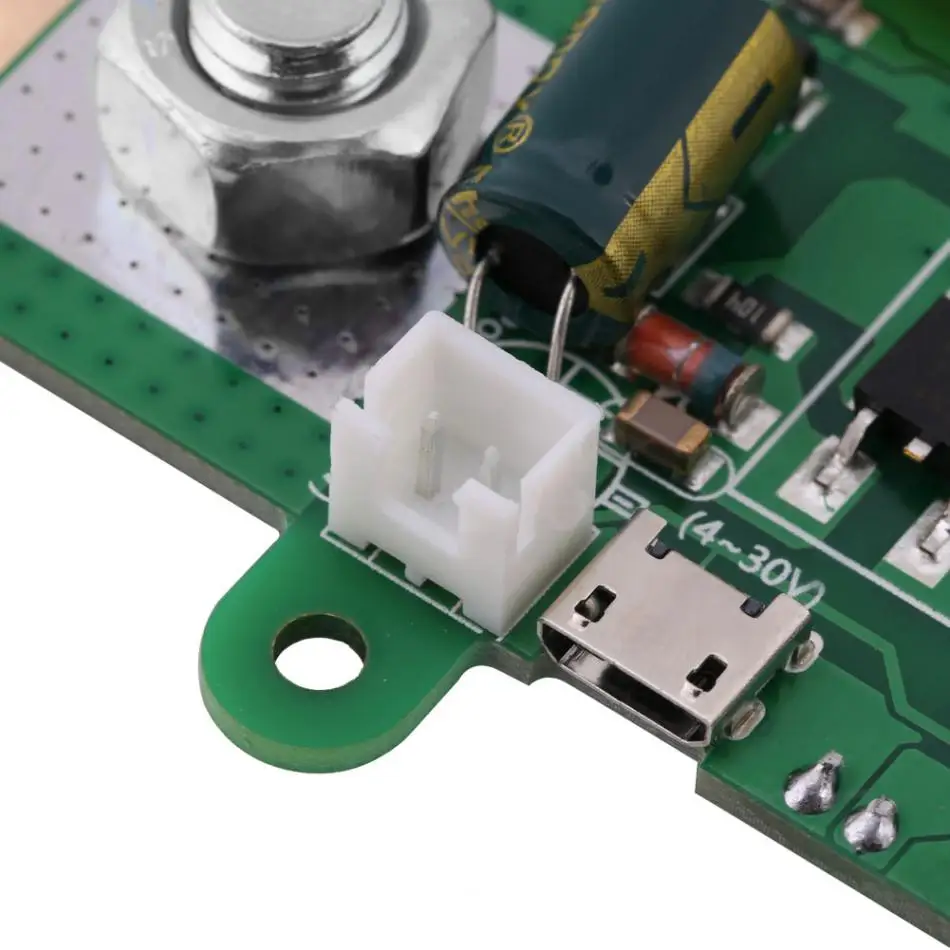

• When testing voltage is lower than 7.8V, the module will need power supply of DC 4-30V by micro USB; when testing voltage is higher than 7.8V, there is no need for power supply.
• When voltage is too high, too low, or current is too large, system will display the corresponding threshold protection value, and module will alarm by making sound and flashing red light; the protective output port will output a high level control signal-impedance of 2200ohm and voltage of 3V, which is convenient for technical personnel to load and controller, in order to cut off load and prevent battery damage over discharge.

Specifications:

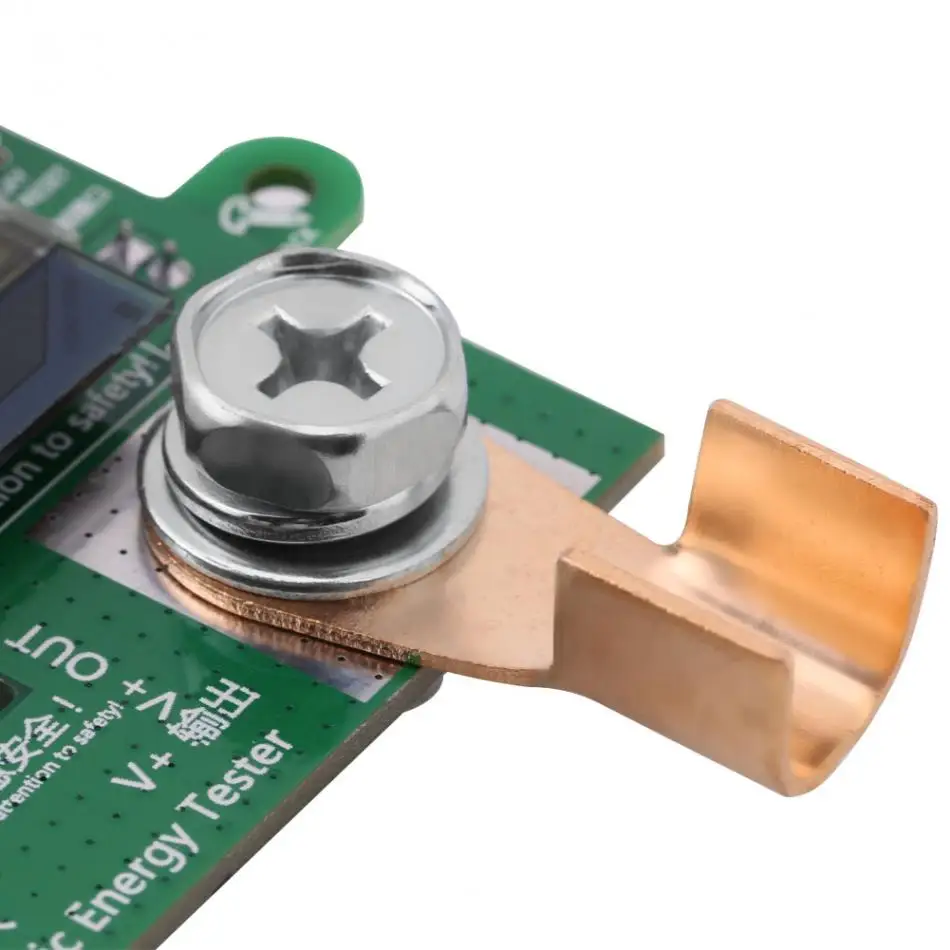

Input/Output Terminal: 100A large current terminal

Voltage Range: 0.00 V~300 V ; Precision: 0.05 V

Current Range: 0.00 A~100 A ; Precision: 0.05 A

Capacity Range: 0~999.999Ah ; Precision: 0.01Ah

Energy Accumulative Range: 0~99999.9 Wh ; Precision: 0.01 Wh

Power Range: 2000~2999.99 W ; Precision: 0.01 W

Impedance Range: 1~999.9 ; Precision: 0.1

Temperature Range: 0~99° ; Precision: 1°

Max. Timing Range: 999H59M59S ; Precision: 1S

Timing Reminder Set: Any value with in 24hours countdown

Small Current Standby Alarm Threshold Parameter: <2 W / 0.5 H

Small Voltage Power Supply Requirement: Measuring <7.8V
Refresh Time: > 500ms/time
Measuring Speed: 0.5times/second
Over-voltage/Over-current Alarm: Displaying alarm interface

Over-voltage Alarm Set Range: 1~300V

Low Voltage Alarm Set Range: 0~149V

Flow Reminder Set Range: 0.2~100A

Display Type: LCD module LCM black font small power consumption green backlight
Operating Temperature: -10~+ 60°

Humidity: 10~80

Pressure: 80~106 kpa

Instruction:

1 )Reset button long-press all data (mAh, Wh, 00:00:00)

2)Quickly press button twice - reset capacity (mAh)

3)Quickly press button three times - reset energy(Wh)

4)Quickly press button four times - reset time (00:00:00)

5)Quickly press button five times - Set up automatic standby and discharge the countdown to remind regularly

6)When output no-load, quick seven keys, and for the current zero to zero. In the current environment temperature for accurate calibration, so more can do more accurate measurement in small current.

7)Click the switch interface, in the high voltage low voltage when backlit parameter settings, by double Strike and three strikes for parameter adjustment, the adjustment process long press is a continuous fast speed value adjustment.

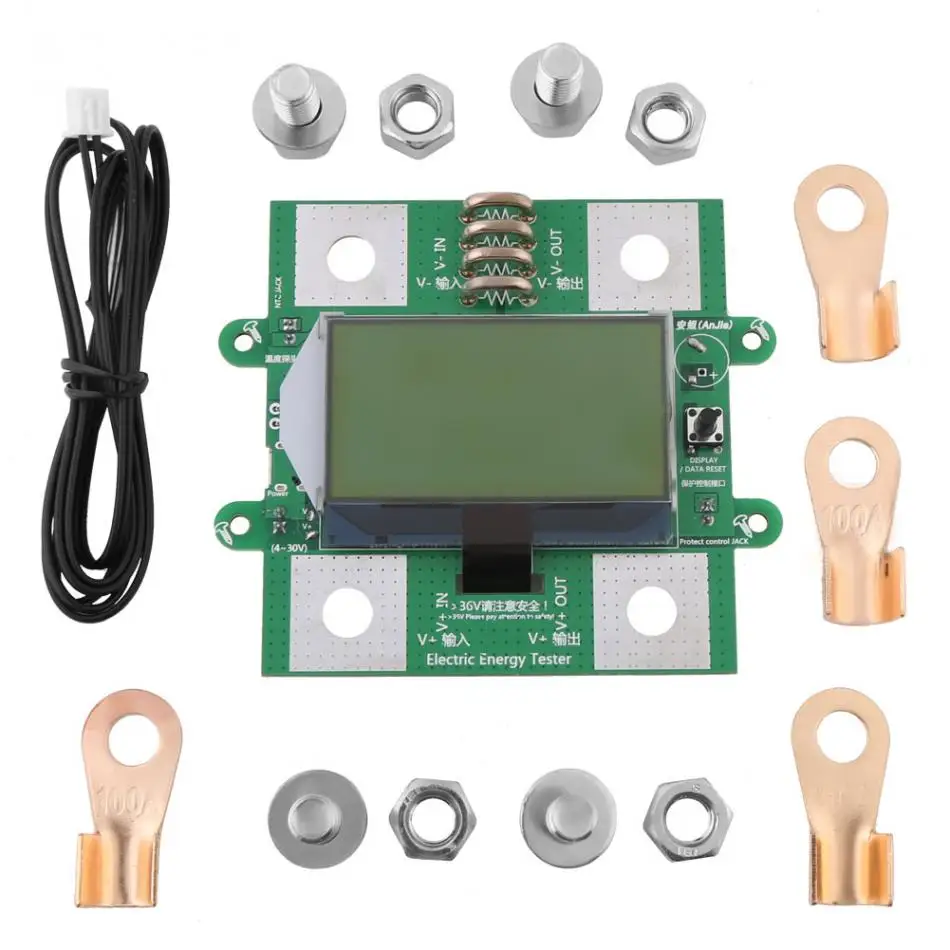

Package Includes:

1 x DC Meter Module

1 x Temperature Probe

1 set x Terminal Accessories
